Tile Backer Board Pallet - BACKER-PRO

From £849.99
Now £849.99
In stock, ready to be shipped
In stock, ready to be shipped
In stock, ready to be shipped
In stock, ready to be shipped
Tile Backer Board Pallet - BACKER-PRO
From £849.99
Now £849.99
Need expert advice?

Need advice or a better price?

Call our expert team 01268 567016

Get next day delivery

For delivery on Tuesday

When ordered before 4pm (On weekdays)

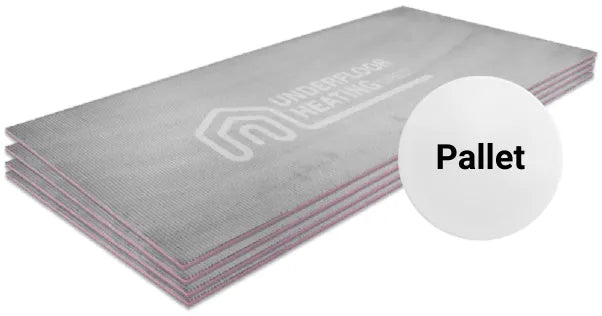

Tile Backer Boards, BACKER-PRO are the ultimate solution for superior waterproofing and heat insulation in underfloor heating and under tile applications. These high-quality extruded polystyrene panels, reinforced with fibreglass mesh on both sides, are specifically designed to complement our under tile heating cables and mats (not suitable for underwood systems).

Key Features:

  • Superior Waterproof Surface: The BACKER-PRO boards provide a durable and waterproof foundation for securely fixing wall or floor tiles, ensuring long-lasting performance and protection against moisture.
  • Outstanding Heat Insulation: With their excellent thermal conductivity value of 0.033 W/mK, these insulation boards significantly enhance the efficiency of underfloor heating systems. They reduce heat-up time and minimize running costs, delivering optimal comfort and energy savings.
  • Wide Range of Thickness Options: Available in 6mm, 10mm, 12.5mm, 20mm, 30mm, and 50mm thicknesses, the BACKER-PRO boards offer versatility to accommodate various installation requirements and insulation needs.
  • Approved by Tile Adhesive Manufacturer Instarmac -Ultra: The BACKER-PRO boards have been rigorously tested and approved by Instarmac -Ultra, a leading tile adhesive manufacturer, ensuring compatibility and reliability.
  • Excellent Sound Insulation: The boards effectively reduce impact sound, creating a quieter and more comfortable environment.
  • Easy Installation: The BACKER-PRO boards can be easily cut with a knife, eliminating the need for complex tools such as a jigsaw. They can also be installed on both floors and walls, following the correct installation method.
  • Dimensional Stability: The boards are waterproof and exhibit excellent dimensional stability, maintaining their integrity and performance even in wet room environments.

Enhance your underfloor heating and tiling projects with BACKER-PRO insulation boards. Their exceptional waterproofing, insulation properties, and ease of installation make them the ideal choice for creating a reliable and efficient heating system with a durable tile surface.

  • Available Thicknesses: 6mm, 10mm, 12.5mm, 20mm, 30mm, 50mm
  • Waterproof: Yes
  • Thermal Conductivity: 0.033 W/mK
  • Sound Insulation: Yes
  • Installation Method: Cutting with a knife, suitable adhesives for concrete or wooden subfloors

Please note: The color of the polystyrene may vary depending on the batch. The boards are not stamped with '', and the image is for advertising purposes only.

Material Extruded Polystyrene Sheet - Polymer Modified Coating
Sheet Dimensions 1200mm x 600mm
Thermal Conductivity 0.033 W/mK
Capillarity Nil
Compression Strength 30 t/m2
Water absorption Less than 0.1 vol%
Tensile Strength 350 KPa
Fire Protection Class Bs 3837:B1 DIN

Concrete Subfloors

When installing any type of tile backer board onto concrete subfloor we recommend using Ultraflexible tile adhesive, please make sure the floor is primed with a suitable primer before installation.

Wood subfloors

When installing onto wooden floors we recommend using Ultraflexible tile adhesive in addition with insulation fixing pack or suitable screws and washers at every 300mm centres. This is approx 15 fixings per board
