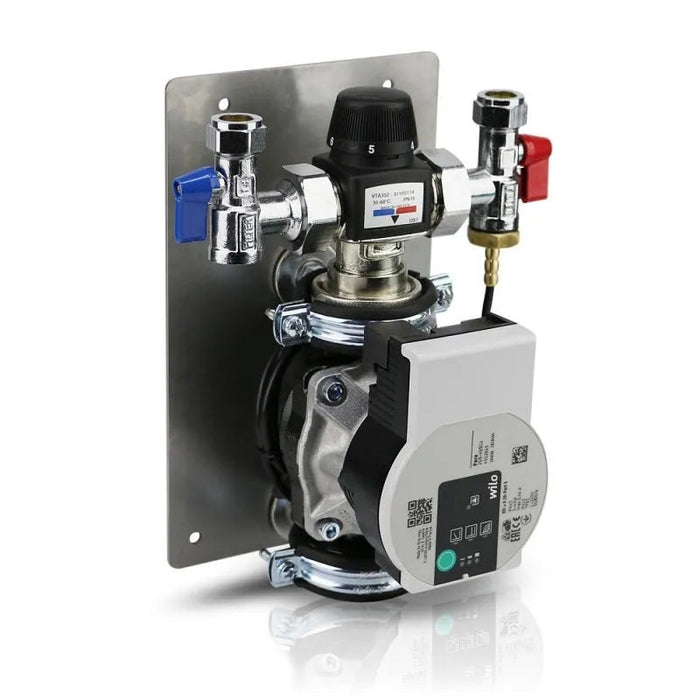

Wilo Single Circuit Pump Pack with ESBE Mixing Valve Unit

The Wilo Single Circuit Pump Pack with ESBE Mixing Valve Unit offers a high-performance and reliable solution for controlling the flow and water temperature in your underfloor heating system. This pre-assembled and factory-tested pump pack is designed to ensure quick and efficient installation, reducing on-site labor and allowing for immediate commissioning.

Engineered to deliver exceptional efficiency and reliability, the Wilo / ESBE Pump Mixer Pack features an A-rated Wilo pump, which ensures optimal performance while minimising energy consumption. The ESBE mixing valve unit, equipped with precise thermostatic control, enables accurate adjustment of the flow temperature, meeting the specific needs of your underfloor heating system for perfect comfort and energy savings.

• Advanced Temperature Control: The built-in temperature switch ensures the pump only operates once the water temperature exceeds 40°C, reducing energy consumption while maintaining system efficiency. The ESBE Mixing Valve then blends the flow and return water to stabilize the temperature in the system.
• Efficient and Energy-Saving Pump: The Wilo Para 25/6 SCU pump, rated A for energy efficiency, guarantees smooth and reliable operation with minimal power usage. Enjoy effective circulation without compromising on energy costs.
• Hassle-Free Installation: This pre-assembled and pre-tested pump pack comes ready for quick installation. All components are carefully pre-packaged to minimise installation time, making the system ready for immediate use after fitting. The compact design also features a wall-mounting plate for easy setup.
• Enhanced Comfort & Energy Efficiency: The ESBE mixing valve, with built-in bypass, ensures optimal temperature control for your underfloor heating system. Achieve balanced and consistent heating performance across the space.
• Built-In Primary Isolation Valves: This feature adds convenience during maintenance and enhances system reliability.

This Wilo Single Circuit Pump Pack offers the perfect balance of performance, efficiency, and ease of installation. Whether you're upgrading your heating system or installing a new one, this system simplifies the process while providing superior results. Trust in the renowned quality of Wilo and ESBE for a reliable underfloor heating solution that meets your needs for both comfort and energy efficiency.

• System Type: Single zone
• Mixing Valve: ESBE 35-60 thermostatic mixing valve with built-in bypass (made in Sweden)
• Design: Compact, with a wall-mounting plate for easy installation
• Primary Isolation Valves: Built-in for added convenience
• Pump: Pre-wired Wilo Para 25/6 SCU pump (A-rated for energy efficiency)
• Temperature Control: Fitted temperature switch (activates at 40°C)
• Power Output: 1.5 kW (5 kW maximum output)
• Assembly: Pre-tested and pre-packaged, assembled in the UK for instant installation
• Warranty: 2-year manufacturer warranty

With the Wilo Single Circuit Pump Pack with ESBE Mixing Valve Unit, you can enjoy efficient underfloor heating control, energy savings, and hassle-free installation, all backed by trusted brands and superior engineering.
