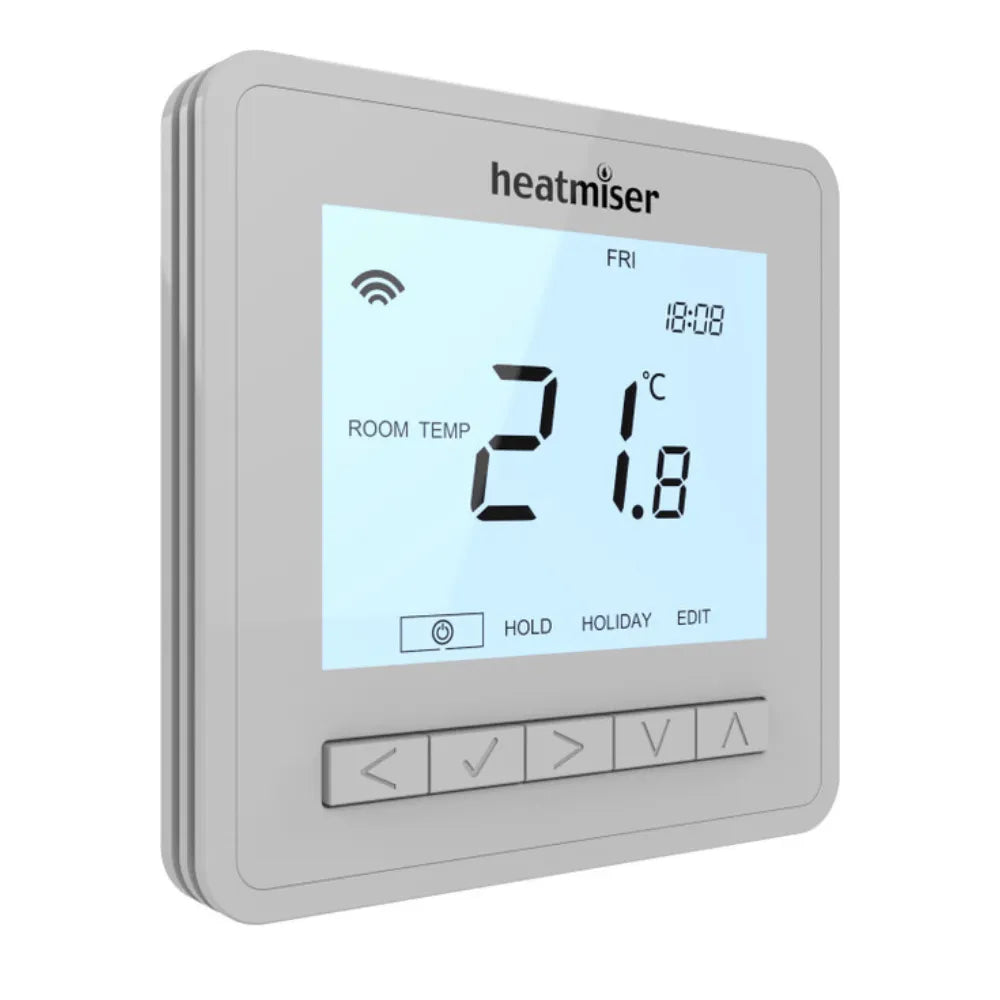

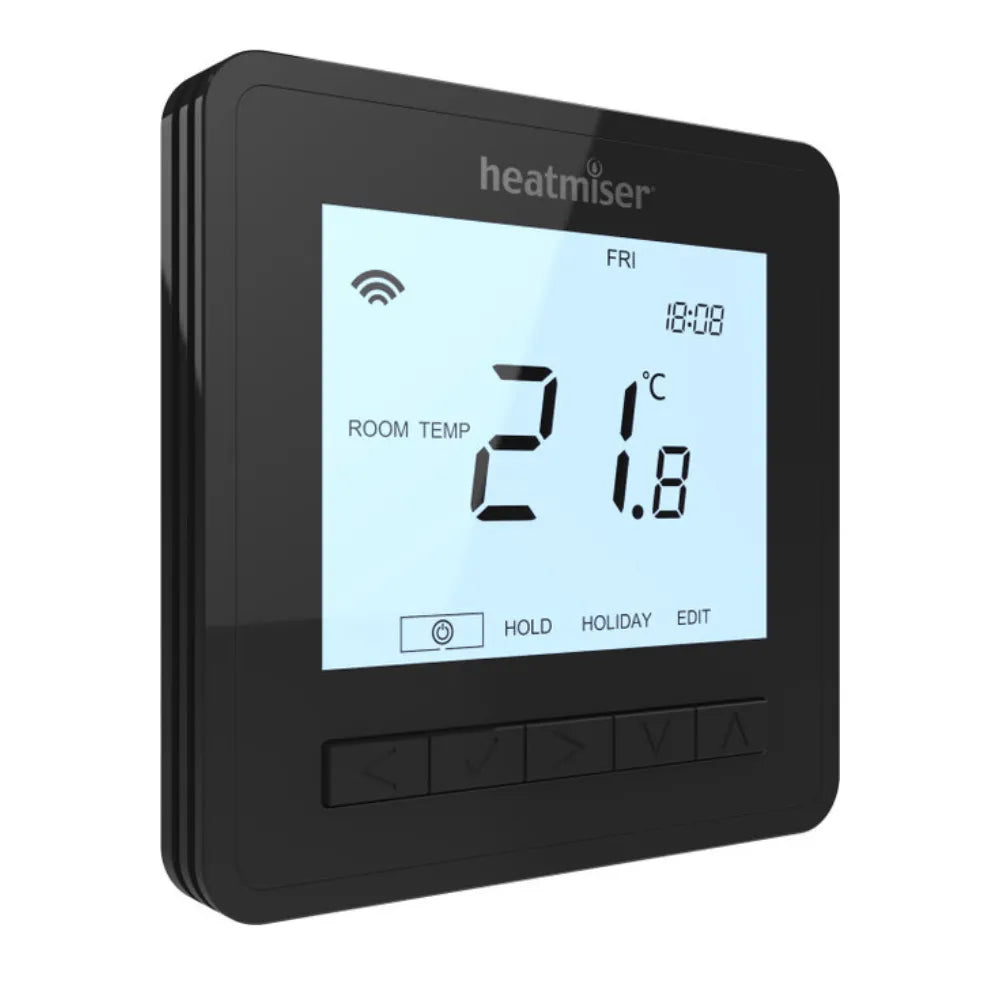

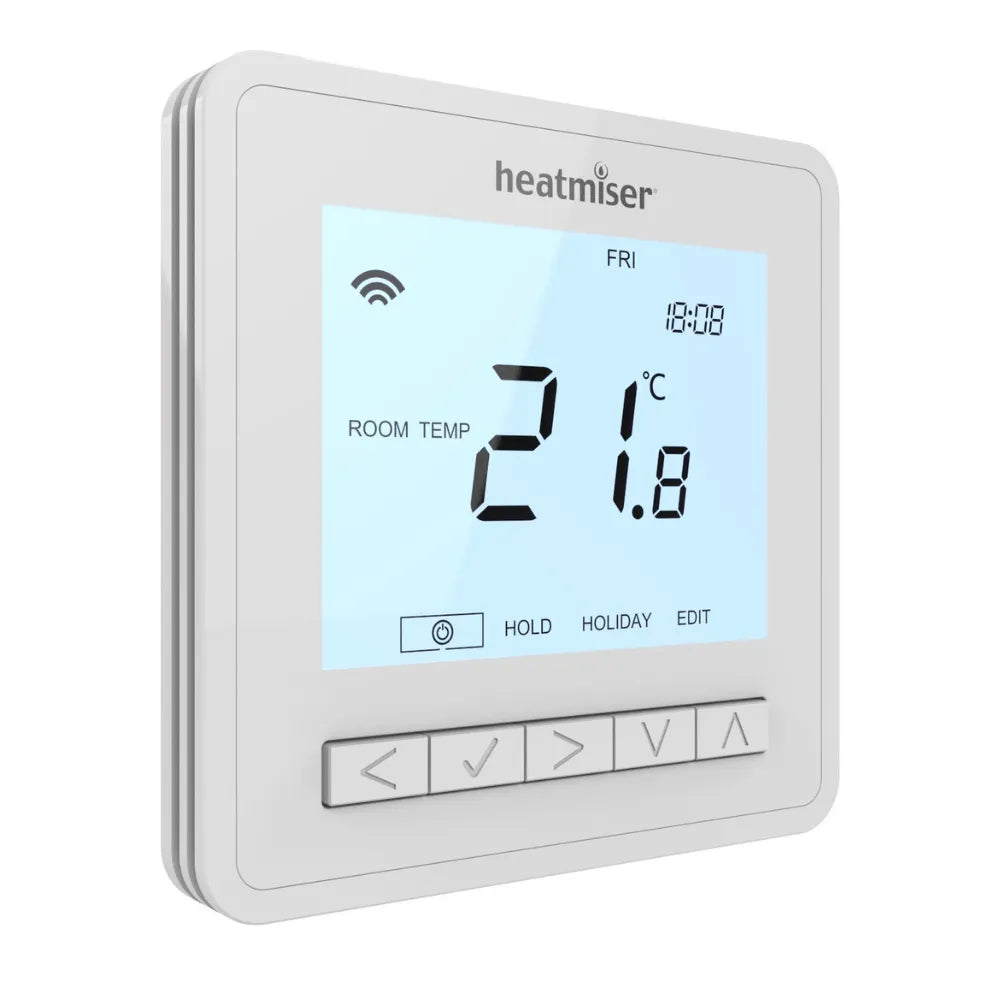

Heatmiser neoAir V3 Wireless Smart Thermostat

Take full control of your home’s heating and hot water with the Heatmiser neoAir V3 Wireless Smart Thermostat. Designed for ultimate convenience, this battery-powered thermostat allows you to manage your heating from anywhere when paired with the Neohub. It integrates seamlessly with the Heatmiser RF Switch and UH8-RF Wireless Receivers, ensuring smooth operation within your heating system.

With flexible configuration options, the neoAir V3 can function as a thermostat, timer, or a combination of both, giving you complete control over your heating and hot water schedules.

Smart & Adaptive Heating

• Self-Learning Preheat: The thermostat automatically calculates the optimal heat-up time, ensuring your home reaches the perfect temperature when needed. It continuously adjusts throughout the year to optimise energy usage and reduce costs.

Reliable Wireless Communication

• Mesh Networking: The neoAir V3 connects wirelessly with the neoHub and other Heatmiser devices, forming a stable, expandable network.
• Signal Extension: If needed, mains-powered neoStat thermostats act as signal repeaters. For further range, you can use the neoPlug or Boost.

User-Friendly & Flexible Operation

• Intuitive Navigation: The user-friendly backlit display makes programming and adjustments easy, even in low-light conditions.
• Battery-Powered: Operates on 4 x AAA batteries, offering flexible installation without the need for wiring.

Multiple Control Modes

• Thermostat Mode: Regulates the temperature for efficient heating control.
• Timer Mode: Schedules heating and hot water times to match your routine.
• Heating & Timer Mode: Combines both functions for precise, automated control.
• Non-Programmable Mode: Allows manual temperature adjustments for those who prefer hands-on control.

Advanced Scheduling & Customisation

• Multiple Programming Options: Choose between 5/2-day, 7-day, or 24-hour scheduling to fit your lifestyle.
• 4 Comfort Levels per Day: Customise temperature settings at different times for maximum comfort.
• Holiday Mode: Set a low-maintenance temperature while you're away to save energy.
• Temperature Hold: Keep a consistent temperature for a set period without affecting your schedule.

Enhanced Functionality & Protection

• Air Sensor Connection: Option to connect an air sensor for accurate temperature readings.
• Floor Sensing Mode (Remote Floor Sensor): Enables temperature monitoring and control for underfloor heating.
• Wireless Switching: Compatible with UH8-RF and RF Switch for seamless wireless control.
• Frost Protection: Prevents freezing temperatures that could damage your heating system.
• Celsius/Fahrenheit Selectable: Choose your preferred temperature unit.
• Key Code Lock: Prevents unauthorised access to settings.

The Heatmiser neoAir V3 brings convenience, energy efficiency, and advanced control to your fingertips. Whether you want to schedule heating times, control temperatures remotely, or optimise energy use, this smart thermostat is the perfect solution.

Heatmiser neoAir V3

• Power Supply: 4 x AAA Batteries

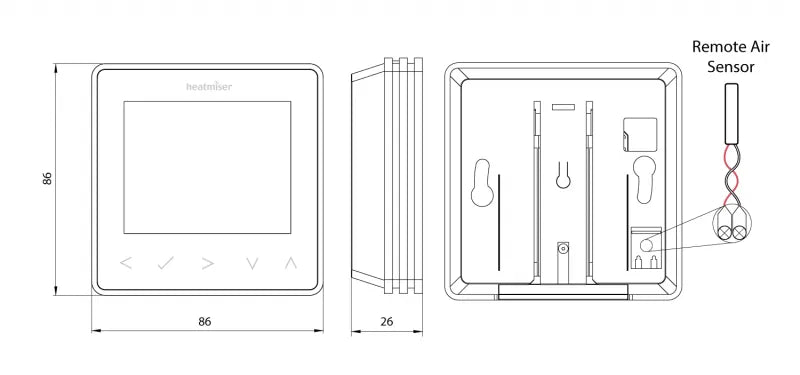

• Dimensions (L x H x D): 86 x 86 x 26mm
• Temperature Range: 5 - 35°C
• Heating Levels: 4
• Optional Probe: Sensor Probe or Thimble Sensor (not included)
• Probe Rating: 10Kohm
• IP Rating: IP20

Mounting the neoAir V3

1. Carefully separate the thermostat’s front panel from the back plate using a small flat-head screwdriver.
2. Use the back plate as a template to mark two mounting holes on the wall.
3. Drill the holes and insert the provided wall plugs.
4. Secure the back plate to the wall using screws.
5. Clip the front panel back onto the mounted back plate.

Important:

• Do not install near direct heat sources, as this may affect functionality.
• Avoid pressing hard on the LCD screen to prevent damage.

This wireless thermostat is designed for surface mounting and offers a hassle-free installation process.
