Heatmiser neoStat-E Programmable Thermostat

Introducing the Heatmiser neoStat-E thermostat, a sleek and stylish addition to any modern home. Available in three stunning colors - White, Black, and Silver - this thermostat not only provides precise temperature control but also enhances the aesthetics of your living space. With its compact size, just a little bigger than a standard light switch, the neoStat-E blends seamlessly into your home decor.

Key Features:

• Remote Heating Control: The neoStat-E offers the convenience of controlling your heating system from anywhere. When used in conjunction with the Heatmiser neoHub, you can easily manage and adjust the temperature settings via your smartphone or tablet.
• Easy Navigation: The neoStat-E features an intuitive interface with an easy-to-navigate programming system. All the options are conveniently displayed across the bottom of the backlit screen, ensuring effortless control.
• Self Learning Preheat: With its self-learning preheat function, the neoStat-E calculates the required heat-up time to ensure your home is warm and comfortable when you wake up or return home. This feature is automatically optimized throughout the year to save energy and adapt to any changes in your home environment.
• Temperature Hold Facility: The temperature hold feature allows you to set a desired temperature for a specific duration, making it ideal for parties or temporary adjustments. After the set time expires, the thermostat will revert back to its programmed schedule.
• Key Lock Feature: The key lock feature, standard on all neoStat-E models, prevents unauthorized tampering of the heating system, ensuring that your settings remain secure.
• Backlit Display: The neoStat-E incorporates a backlit display that enhances visibility and readability. The backlight turns off automatically when not in use, saving energy and reducing distractions.

Additional Features:

• Thermostat and Timer Mode: The neoStat-E can be configured to operate as both a thermostat and a timer, giving you control over various heating applications, such as towel rails or lighting.
• Flexible Programming Options: Choose from non-programmable, 5/2 day, 7-day, or 24-hour programming modes to suit your schedule and lifestyle.
• Holiday Function: The holiday function allows you to set a specific temperature for when you are away, helping to save energy and maintain a comfortable environment upon your return.
• App Control: Utilize the Heatmiser app for convenient remote control and access to advanced features of the neoStat-E thermostat.
• Air Sensor Connection: Connect an air sensor to the neoStat-E for precise temperature monitoring and control.
• Floor Sensing Mode: The thermostat supports floor sensing mode, ensuring optimal comfort and temperature regulation for underfloor heating systems.
• Key Code Facility: The key code facility adds an additional layer of security by requiring a code to access and modify thermostat settings.
• Frost Protection: The neoStat-E includes frost protection functionality to prevent freezing in colder environments, providing peace of mind and protection for your heating system.

• Remove the screw from the bottom face of the thermostat, then carefully separate the front half from the back plate.

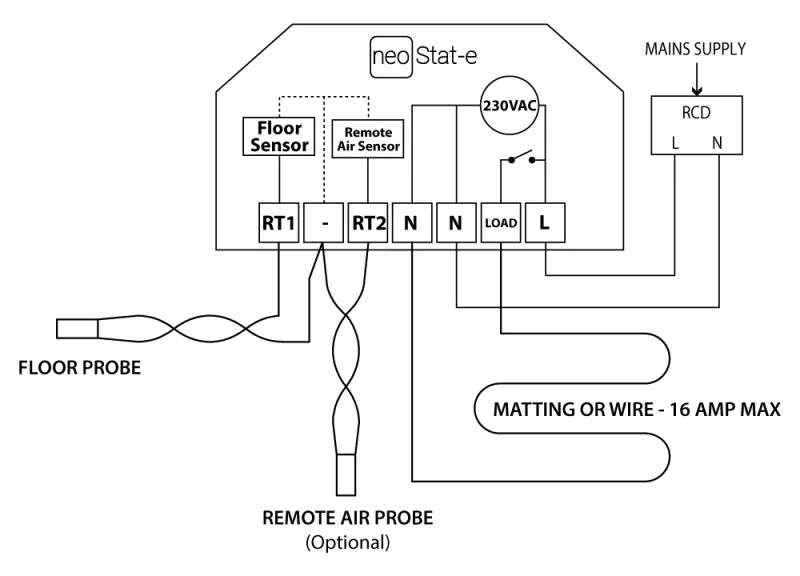

• Place the thermostat front somewhere safe. Terminate the thermostat as shown in the above wiring diagram.
• Screw the thermostat back plate securely into the back box.
• Clip the front of the thermostat onto the back plate, securing it in place with the retaining screw.

Important: Do not install near a direct heat source as this will affect functionality.

Important: Do not push hard on the LCD screen as this may cause irreparable damage.

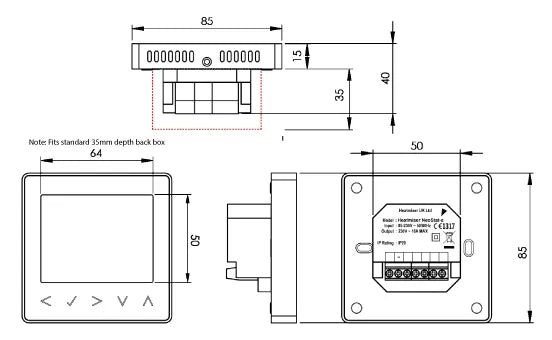

This neoStat-e is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.
