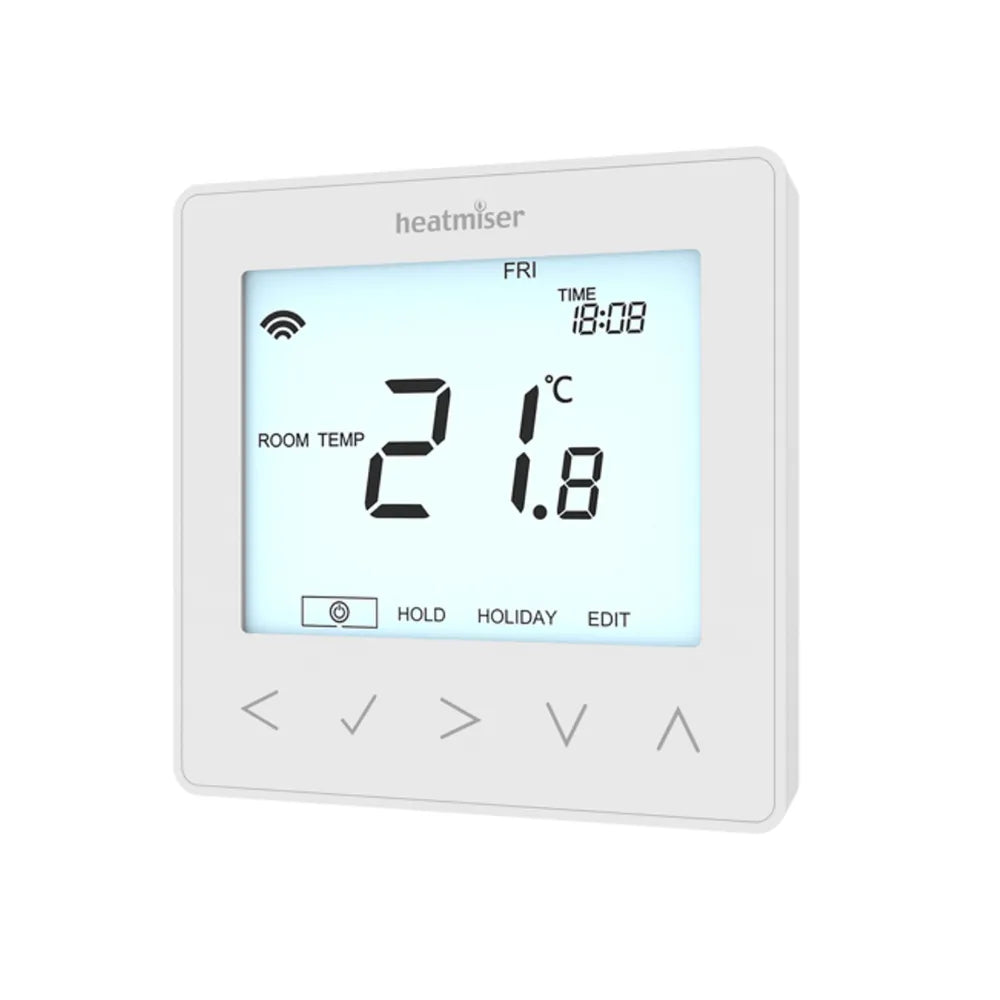

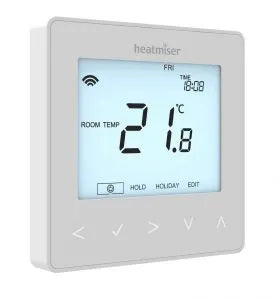

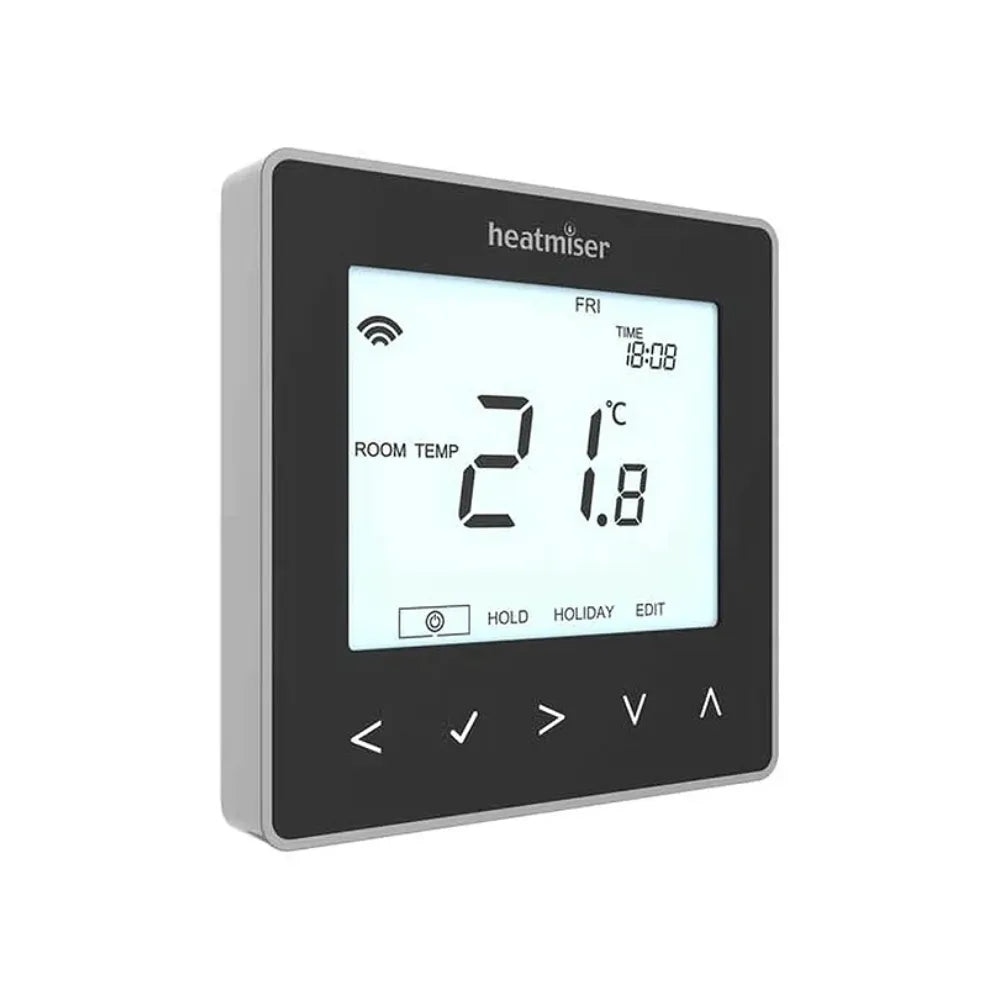

Heatmiser neoStat V2 Programmable Thermostat

The Heatmiser neoStat V2 is a versatile and feature-rich programmable thermostat that provides precise control over your home heating system. Powered by 230v and equipped with a volt-free switch, the neoStat communicates with the neoHub and other neoStats in your home, creating a fully controllable network system for efficient heating.

Key Features:

• Seamless Installation: The neoStat is designed to replace an existing three-wire thermostat, making installation quick and hassle-free. Once connected to the neoHub, you can enjoy remote control functionality for added convenience.
• Thermostat or Timer Mode: The neoStat can function as a thermostat or a timer, providing control over not only your heating but also other devices such as towel rails or lighting, allowing comprehensive control over your home environment.
• Mesh Networking: The neoStat utilizes mesh networking technology, ensuring reliable and scalable communication with the neoHub. Each mains-powered neoStat acts as a signal repeater, guaranteeing robust connectivity throughout your home.
• Easy Navigation: The neoStat series features an intuitive user interface with easy-to-navigate programming options. All settings and functions are conveniently accessible at the bottom of the backlit display, providing a user-friendly experience.
• Self Learning Preheat: With the Self Learning Preheat feature, the neoStat calculates the optimal heat-up time to ensure your home is warm when you wake up or return home. It continuously adjusts this preheat time based on seasonal changes, helping you save energy and money.
• Programmable Options: The neoStat offers various programming options, including 5/2 day, 7-day, or 24-hour programming modes. This allows you to customize your heating schedule to suit your lifestyle and preferences.
• Holiday Function: The thermostat includes a holiday function that allows you to set a specific temperature while you're away, helping to conserve energy without compromising comfort.
• Temperature Hold: The temperature hold feature enables you to lock the thermostat at a specific temperature, providing consistent heating according to your preference.
• App Control: The neoStat can be controlled remotely through a dedicated mobile application, giving you the flexibility to manage your heating system from anywhere in the house.
• Air Sensor Connection: The thermostat supports an air sensor connection, allowing you to monitor and control the temperature accurately for optimal comfort.
• Floor Sensing Mode: With the floor probe (sold separately), the neoStat can operate in floor sensing mode, ensuring precise temperature control for underfloor heating systems.

Experience the convenience and versatility of the Heatmiser neoStat V2, a programmable thermostat that offers advanced features, easy navigation, and remote control capabilities. With its reliable networking, self-learning capabilities, and programmable options, this thermostat provides efficient and comfortable heating control for your home.

• Remove the screw from the bottom face of the thermostat and carefully separate the front half from the back plate.
• Place the thermostat front in a safe location. Terminate the thermostat as shown in the wiring diagram. Additional wiring diagrams are available in the downloadable user guide.
• Screw the thermostat back plate securely into the back box.
• Clip the front of the thermostat onto the back plate and secure it in place with the retaining screw.

Important: Avoid installing the thermostat near direct heat sources as it may affect functionality.

Important: Avoid applying excessive pressure on the LCD screen to prevent irreparable damage.

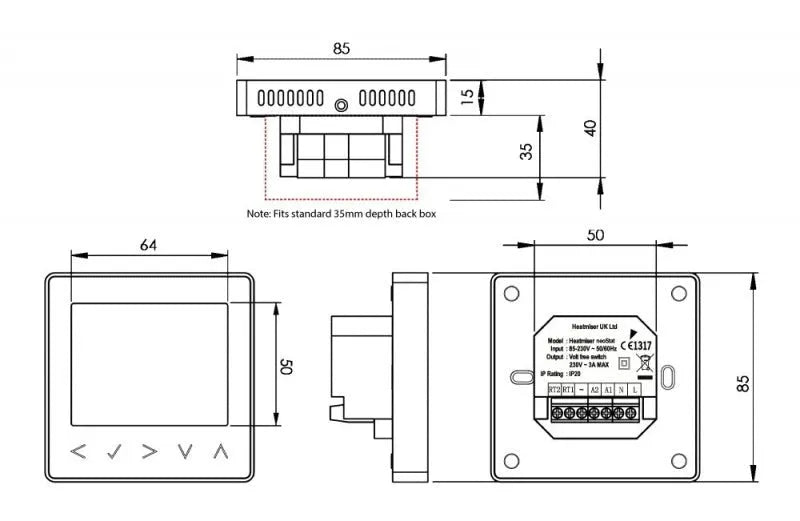

The neoStat is designed for flush mounting and requires a back box with a minimum depth of 35mm to be recessed into the wall prior to installation.
