Heatmiser UH8-N Wiring Centre 12V - 8 Zone

From
Was
£116.19
From £116.19
Now £116.19
Only 4 left!
UH8-N

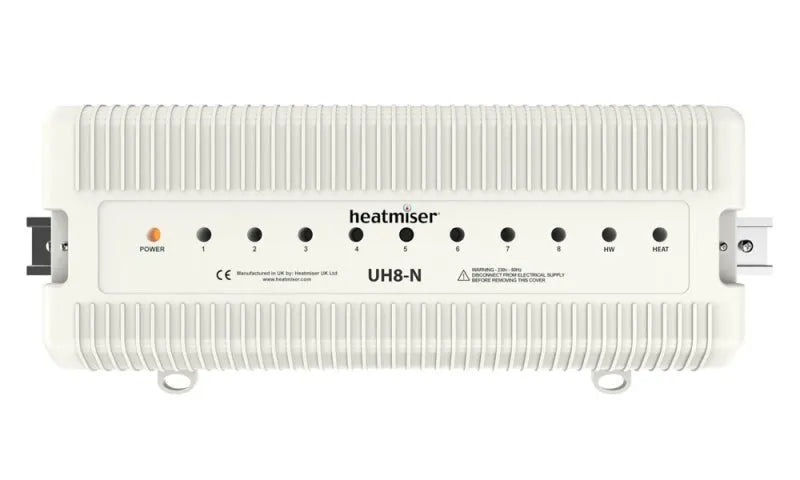

Heatmiser UH8-N Wiring Centre 12V - 8 Zone
From
Was
£116.19
From £116.19
Now £116.19
Get next day delivery

For delivery on Tuesday

Order within hrs mins secs

The Heatmiser UH8-N Wiring Centre is a versatile and efficient solution designed to work seamlessly with 12V Network thermostats. Acting as a central switching unit, it is best positioned next to the underfloor heating manifold, ensuring optimal heating control for your system.

Key Features
  • 8-Zone Control – Precisely manage up to eight heating zones, allowing independent temperature regulation for different areas of your home or building.
  • Hot Water Cylinder Output – The UH8-N includes a dedicated output for a hot water cylinder, enabling seamless integration of hot water management into your heating system.
  • On-Demand Switching – When heat is required in any zone, the UH8-N activates a 230V output, switching the relevant zone actuators, underfloor heating pump, and valve for accurate temperature control and energy efficiency.
  • Boiler Compatibility – Featuring a volt-free boiler connection, the UH8-N is compatible with most boiler models, ensuring seamless communication between your heating system and boiler.
  • Supports Multiple Actuators – Each zone can control up to six actuators, providing comprehensive underfloor heating management.
  • Independent Radiator ControlZone 8 can be configured as a radiator zone, allowing separate radiator heating control. When activated, this mode prevents unnecessary activation of the underfloor heating pump, valve, and boiler.
  • DIN Rail Mounting – Designed for easy installation, the UH8-N supports DIN Rail Mounting, ensuring a secure and organised setup.
  • LED Output IndicationLED indicators provide real-time status updates for zones, boiler, pump, and valve, making installation, testing, and troubleshooting easier.
  • Network Connectivity – The UH8-N connects to the Heatmiser Touchpad, enabling remote monitoring and advanced control of your underfloor heating system.
Specifications
Feature Details
Power Supply 230V AC
Relay Load (Max) 3A
Total Load (Max) 5A
IP Protection Rating IP20

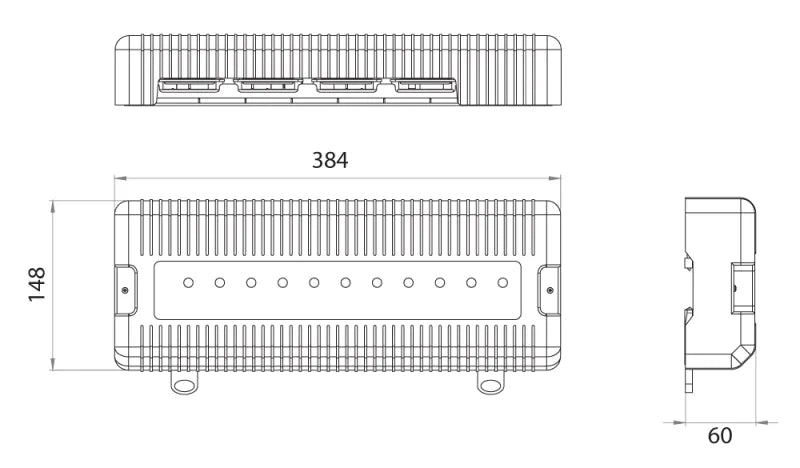

Dimensions (L x H x D) 384 x 148 x 60 mm
Number of Heating Zones 8
Number of Hot Water Zones 1
Actuator Outputs 240V
Network Wiring to Thermostats Low Voltage
