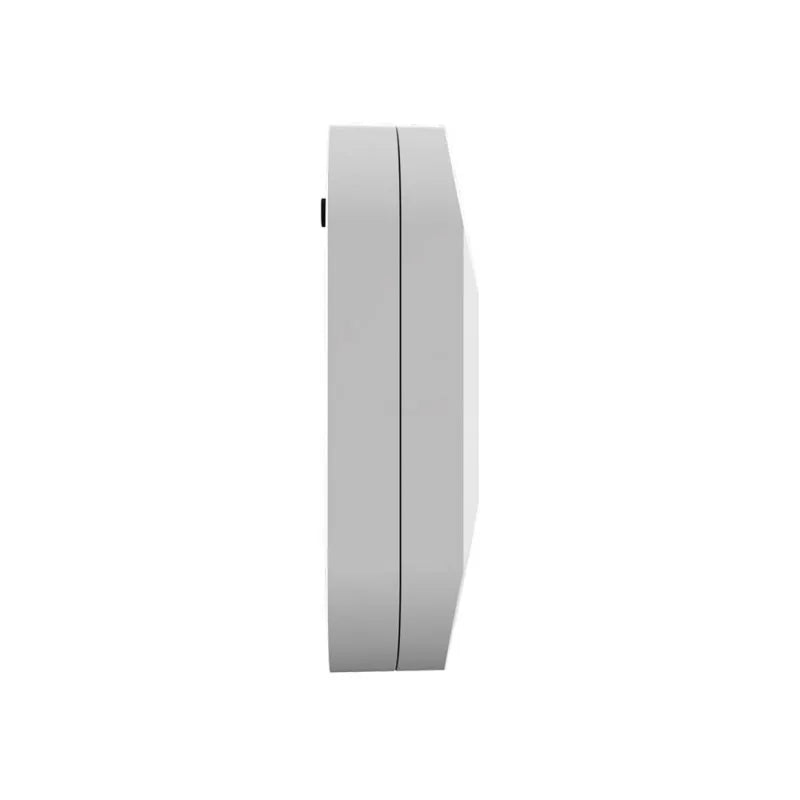

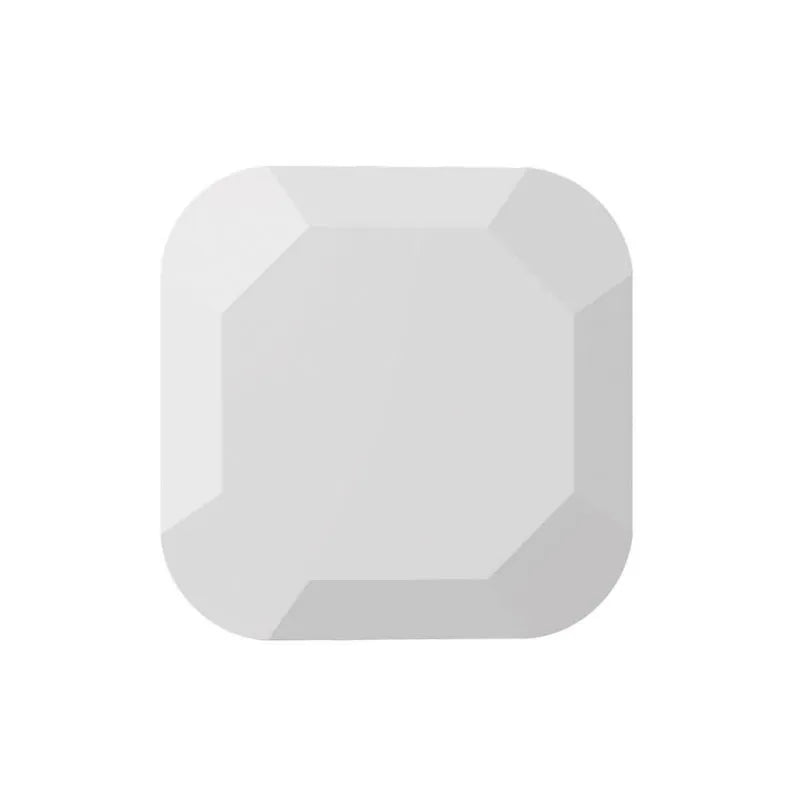

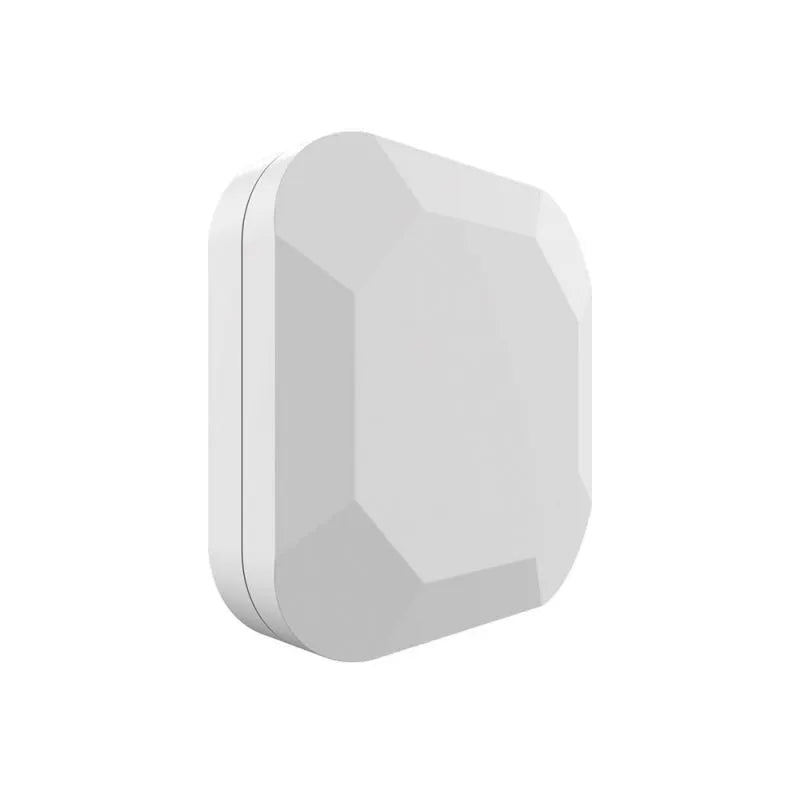

Heatmiser Wireless Air Temperature Sensor

The Heatmiser Wireless Air Temperature Sensor is a flexible and essential accessory designed to integrate seamlessly with the Touch V2, Edge, and Neo System. Whether used as a standalone sensor or as part of a group to average temperature readings, this sensor enhances the accuracy and efficiency of your heating system.

Key Features:

• Standalone or Group Temperature Measurement: Use the Wireless Air Sensor to monitor the temperature in specific areas of your home. For larger spaces, multiple sensors can be deployed to average the temperature across a broader area, ensuring consistent climate control throughout your home.
• Neo System Integration: When paired with the Neo System, the Wireless Air Sensor connects to the neoHub Gen 2 for optimal performance. Once linked, you can pair the sensor with the appropriate zone, either for simple temperature monitoring or more advanced temperature averaging.
• Easy Pairing and Setup: The Wireless Air Sensor can be easily connected via the Neo App (available on iOS and Android). After pairing with the neoHub Gen 2, you can select one of two operational modes:

- Monitoring Mode: The sensor simply measures the temperature in the selected area
- Pair to Zone Mode: Link the sensor to a neoStat in your system, where you can choose between:

-Averaging Mode: The thermostat will average the temperature from both the Wireless Air Sensor and the internal sensor within the neoStat.
-Remote Only Mode: Disable the internal sensor in the neoStat and rely solely on the Wireless Air Sensor for temperature control in the selected zone.

• Enhanced Comfort Control: The Wireless Air Temperature Sensor allows for precise, customised temperature regulation in any part of your home. Whether you need individual zone control or a larger average temperature reading, this accessory ensures optimal heating efficiency and comfort.

Specifications:

• Range: 40 meters
• RF Frequency: 868 MHz
• IP Rating: IP20
• Weight (including battery): 16g

Installation:

1. Surface Mounting: The Wireless Air Sensor is designed to be mounted on a flat surface.
2. Battery Setup: Use a small coin to unscrew the battery cover in a counter-clockwise direction. Remove the clear plastic tab, replace the battery cover, and you’re ready to begin pairing.
3. Pairing: Hold down the pairing button on the sensor to initiate pairing with a compatible Heatmiser thermostat (refer to the pairing section in the user manual for detailed instructions).
4. Mounting: Apply the included double-sided adhesive disc to the back of the sensor. Choose a location within the signal range and attach the sensor securely.

Placement Recommendations:

• Install the sensor on a wall at a height of 1.5 meters.
• Avoid placing the sensor directly above heat sources such as radiators or in areas with direct sunlight or drafts.

Conclusion:

The Heatmiser Wireless Air Temperature Sensor is an invaluable accessory for enhancing the functionality and efficiency of your heating system. Whether you need precise temperature monitoring in one room or across multiple zones, this sensor provides the flexibility and control necessary to ensure your home remains comfortably heated.
